Devices

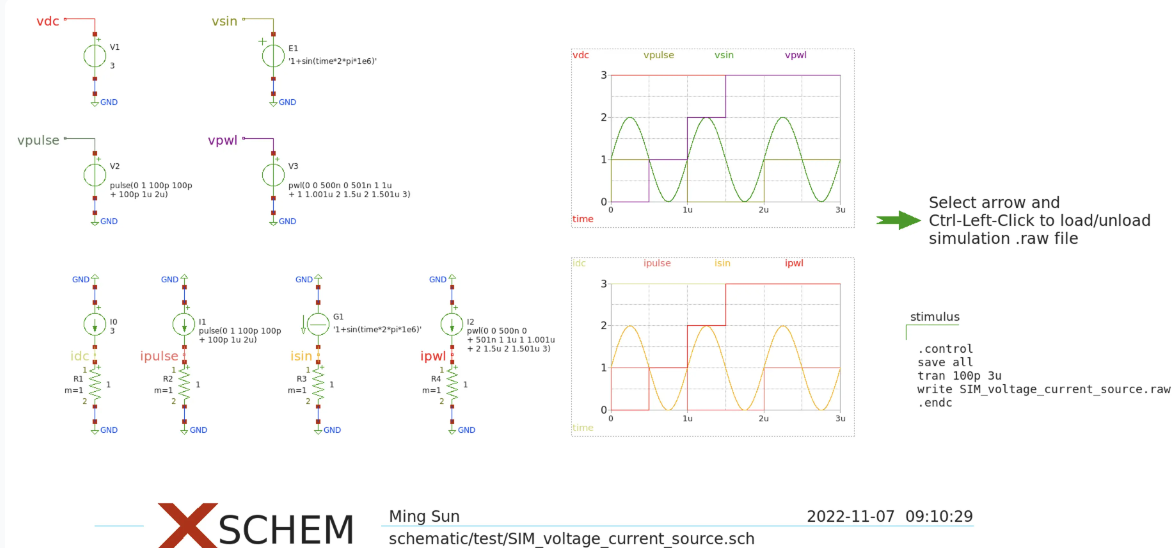

Voltage/Current Source
- Library: xschem_library/devices
- Cell name: vource.sym or isource.sym
DC
value=<v_dc>
Pulse
value="pulse(<v_1> <v_2> <t_delay> <t_rise> <t_fall> <t_pulse> <t_period>)"
PWL
value="pwl(<v_1> <t_1> <v_2> <t_2> <v_3> <t_3> ...)"
Sin
value="<v_dc>+sin(2*pi*<f_c>)"
