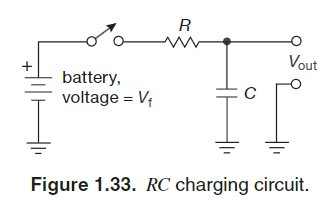

RC Circuits-1759034014782.png

A Capacitor

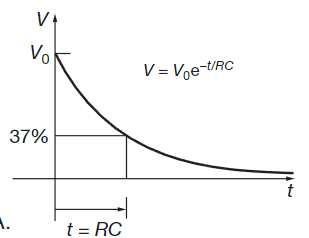

  • discharges across a resistor according to

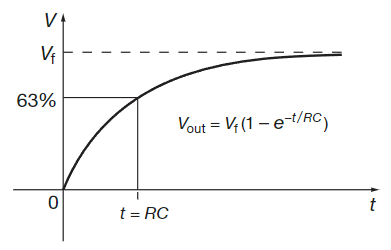

  • charges across a resistor according to
  • reaches 50% of it's final value after 0.7RC
  • reaches 1%/99% (steady state) of it's final value after 5RC

RC Circuits-1759033921411.png
RC Circuits-1759033882169.png

Examples

Passive RC Low-Pass Filter
Passive RC High-Pass Filter
Passive RC Integrator
Passive RC Differentiator
